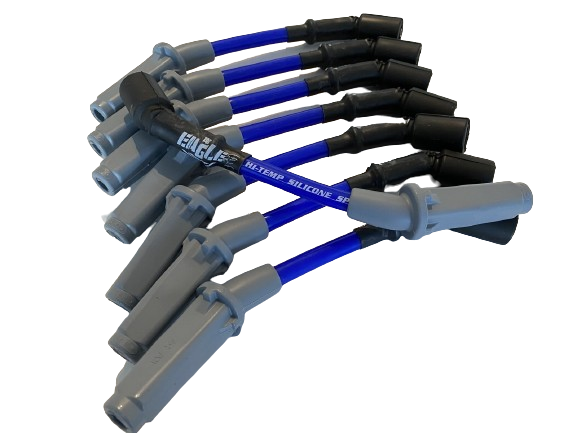

EAGLE 10.5mm Ignition Spark Plug Leads Wires Holden VE -VF Gen LS2 LS3 LSA Gen IV 2006-17, Blue Colour Leads

10.5mm Eliminator Series II Racing Eagle Leads

Specifications:

• Chev 6.0-6.2L LS2, LS3 series Gen IV V8 inc. L76, L77, L98, LSA Supercharged
• 10.5mm High Performance Ignition Leads
• HEI angled dist. boots/ angled spark plug boots
• Available Colours- Red, Blue, Black
• 10.5mm Eliminator Series II Eagle Leads
• Made in Australia

This set may not fit L77 engines with advanced fuel management. We do stock a longer set for those applications. Message us for the correct set.

These are the next generation in high performance and racing ignition lead technology. Designed for all ignition systems including very high output aftermarket ignition systems such as Crane, MSD and ICE systems.

The Eagle 10.5mm leads have 3 layers of silicone jackets to allow the leads to carry secondary voltages in excess of 70,000 volts while emitting virtually zero RFI. This means that they are also compatible with virtually all hi-tech on board computer systems.

Although we try to keep all of the popular combinations of Eagle ignition leads on the shelf, it is impossible to keep them all on the shelf especially when you take into account that Eagle make their sets from 9.0mm, 10.5mm and 11.0mm silicone coated cable in 3 different colours. Then you have under exhaust manifold, over the valve cover and around the valve cover sets. On top of that we need to account for different spark plug boots and standard ignition distributor boots (female cap posts), HEI (male disi cap posts) and MSD boots.

STAINLESS STEEL FERRITE SPIRAL INNER CORE:
Eagle Eliminator series are fitted with 1300 ohms per metre Ferrite Spiral Core conductor which by induction design delivers peak voltage to the plugs ensuring almost complete combustion for super quick starts and smooth running.

More ignition power means improved combustion efficiency so you can get better economy and more power across the RPM range. The Patented Dual-Mag design incorporates two premium Spiral Core magnetic suppression core conductors which are protected by a layer of braided fiberglass and then coated in hi-temp silicone to resist the harshest of under bonnet conditions.

Features:

Boot & Tube Assembly Features:

• Hi-temp Silicone Well Cover boot
• PVT insulator tube insulates plug terminal to prevent high voltage crossover
• Hi-temp Silicone Tip Seal.

Terminal Features:

• High Memory spring steel retaining clip for positive terminal locking at all RPM'S.
• Extra long .51mm base offers minimal heat transfer from plug tip to inner conductor. This ensures maximum cable life.
• Triple cable retaining ribs and "W" shaped crimp ensure superior cable retention.

Cable Features:

• Simply "the best" Stainless Steel wound Ferrite coated Spiral Core conductor yields ultra low resistance ensuring peak voltage delivery to the spark plugs.
• High Dielectric Silicone inner jacket.
• Technologically advanced nylon tape adds tensile strength.
• 260°C High Temp. modified Silicone outer jacket ensures complete protection against heat and engine bay contaminants.
