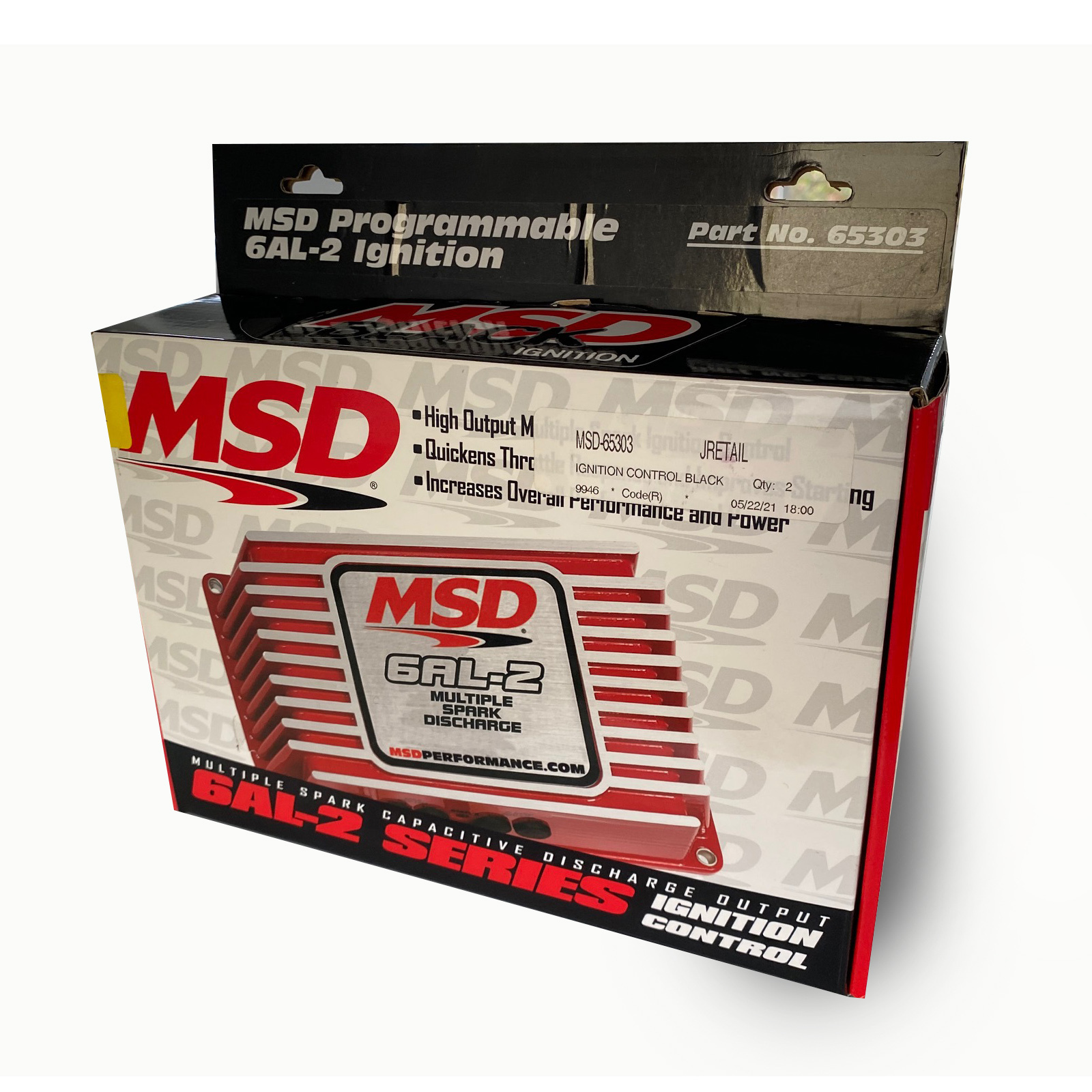

MSD Ignition Programmable Digital 6AL-2 Ignition Box Computer

Multiple Spark Discharge Ensures More Complete Combustion + More power

The Programmable 6AL-2 lets you lock out the distributor and program a timing curve via a PC. You'll also be able to set a 2-Step Rev Limiter, a retard for use with nitrous and even a boost timing curve for forced induction engines! The Programmable 6AL-2 shares the same advanced features of the new 6AL-2 with 535 primary volts and spark energy reaching 135 mJ! Vibration mounts, wiring and a PC cable are supplied. Must use MSD Pro-Data+ Software to program.

Features:

• Advanced features allow for use in street and racing applications
• PC Programmable with easy-to-use Windows based Pro-Data +Software
• Plot a boost timing map with 0.1° per psi accuracy
• Programmable 3-Step Rev Limiter (100 RPM increments)
• Step retard for nitrous applications plus a boost timing map
• Capacitive Discharge technology for fast rise time and maximum spark energy

Specifications

Brand: MSD
Color:  Black
Current Draw:    .7 Amp per 1,000 RPM
Emission Code:    1
EO Number:    D-115-22
Primary Voltage:    535 Volts
Product Type:    Digital Programmable 6AL-2
RPM Range:    12,500 RPM with 14.4 Volts
Secondary Voltage:    45,000 Volts
Spark Energy:    135 mJ per spark
Voltage Required:    12-18 Volts, Negative Ground
Warranty    Limited: 1 Year Warranty
Weight and Size:    3 lbs.,7"L x 4"W x 2"H
UPC:       085132653034
Part Number:    65303
