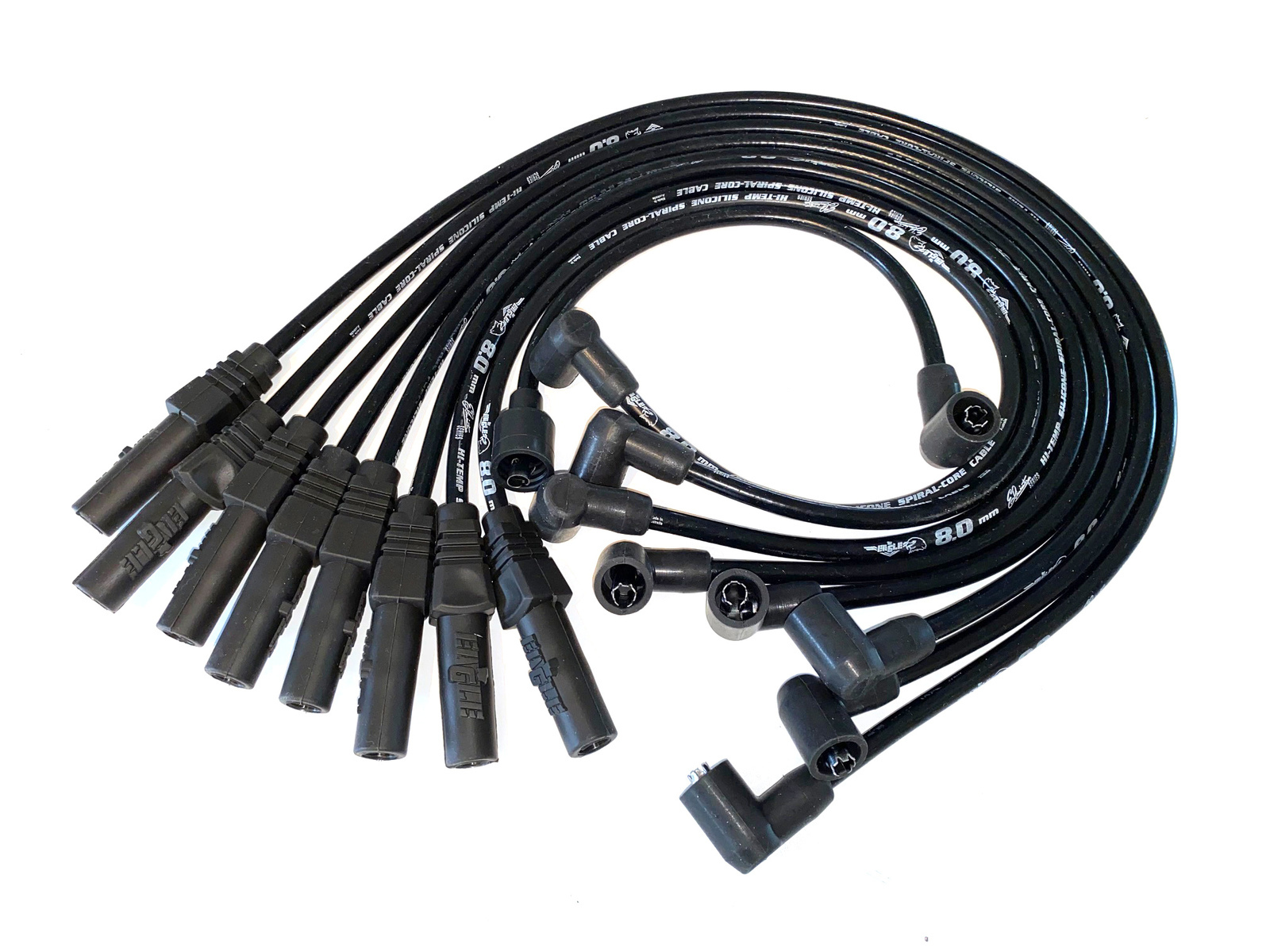

High Performance 8mm Black Cleveland Ignition or Spark Plug Leads-

Stainless steel ferrite spiral inner core silicone ignition leads- suit 302-351 Cleveland-with female post disi cap (does not suit HEI Cap with male terminals)- suit petrol and LPG engines

Eagle 8mm Ignition Spark Plug Leads 8 cyl FORD CLEVELAND 302 351 Black

The Eagle Eliminator Ignition Leads are a high performance low resistance ignition lead set. The lower resistance results in more voltage getting to thge spark plug. Ideal for high performance engines with points or electronic ignition. This set does not suit an HEI distributor with male termainals on the distributor cap. Message our office for the correct set for your application.

Lead Diameter: 8.0mm

Application: Passenger, Petrol & LPG, High Performance, Commercial & 4WD vehicles including Super & Turbo charged motors.

Eliminator Leads are fitted with our 1300 ohms per metre Ferrite Spiral Core conductor which by induction design delivers peak voltage to the plugs ensuring almost complete combustion for super quick starts and smooth running.

More ignition power means improved combustion efficiency so you can get better economy and more power across the RPM range. The Patented Dual-Mag design incorporates two premium Spiral Core magnetic suppression core conductors which are protected by a layer of braided fiberglass and then coated in hi-temp silicone to resist the harshest of under bonnet conditions.

Compatible with:

Features:

Boot Assembly Features:

•     Hi-temp Silicone staright spark plug boots with finger grips

Terminal Features:

•     High Memory spring steel retaining clip for positive terminal locking at all RPM'S.
•     Extra long .51mm base offers minimal heat transfer from plug tip to inner conductor. This ensures maximum cable life.
•     Triple cable retaining ribs and "W" shaped crimp ensure superior cable retention.

Cable Features

•     Simply "the best" Stainless Steel wound Ferrite coated Spiral Core conductor yields ultra low resistance ensuring peak voltage delivery to the spark plugs.
•     High Dielectric Silicone inner jacket.
•     Technologically advanced nylon tape adds tensile strength.
•     260°C High Temp. modified Silicone outer jacket ensures complete protection against heat and engine bay contaminants.

Although we try to keep all of the popular combinations of Eagle ignition leads on the shelf, it is impossible to keep them all on the shelf especially when you take into account that Eagle make their sets in 5.0mm, 7.0mm, 8.0mm, 9.0mm, 10.5mm and 11.0mm silicone coated cable in 3 different colours. Then some engines  different length sets that reach under exhaust manifold, over the valve cover and around the valve cover sets. On top of that we need to account for different spark plug boots and standard ignition distributor boots (female cap posts), HEI (male disi cap posts) and MSD boots.

When we have your leads in stock, we try to send the order out within 24 hours. If your set needs to be ordered from Eagle, please allow 3-10 days before shipping depending on Eagles production times. Please let us know if your set is urgent.

Your lead set may differ to that shown in the above images
