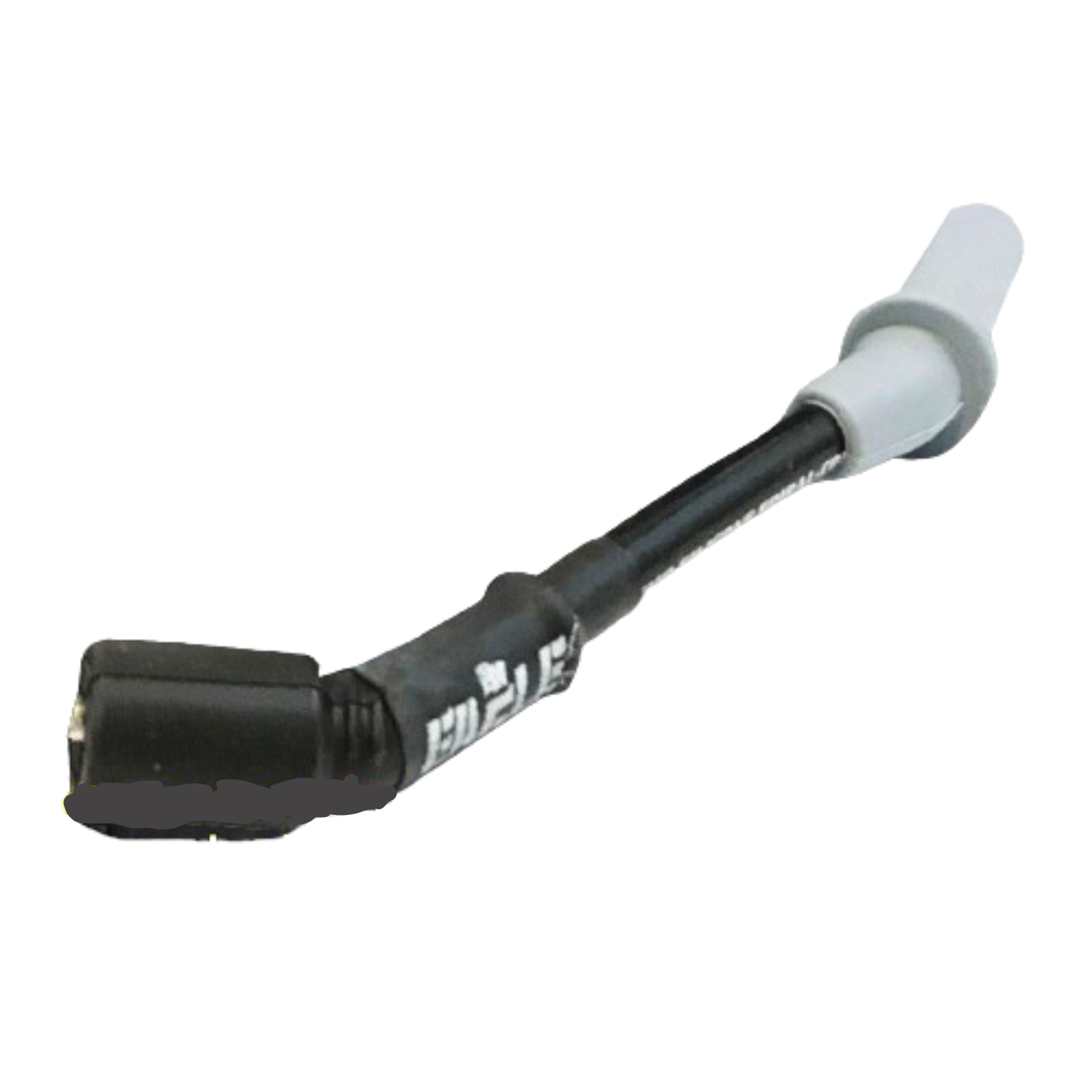

EAGLE 10.5mm Ignition Spark Plug One Lead Only fits Chev 6.0 6.2 LS2 LS3 Gen IV.
SKU code: E1058766BLACK_ONE
EAGLE 10.5mm Ignition Spark Plug Leads Wires Holden VE Gen LS2 LS3 LSA Gen IV 2006-17, 6.0L-6.2L,
One Replacement Black Colour Lead (not a set)
10.5mm Eagle Eliminator Series II Racing Ignition Leads
Specifications:
- Chev 6.0-6.2L LS2, LS3 series Gen IV V8 inc. L76, L77, L98, LSA Supercharged
- 10.5mm Eliminator Series II Eagle Leads
- HEI angled dist. boots/ angled spark plug boots
- Other Available Colours- Red, Blue
This set may not fit L77 engines with advanced fuel management. We do stock a longer set for those applications. Message us for the correct set.
These are the next generation in high performance and racing ignition lead technology. Designed for all ignition systems including very high output aftermarket ignition systems such as Crane, MSD and ICE systems.
The Eagle 10.5mm leads have 3 layers of silicone jackets to allow the leads to carry secondary voltages in excess of 70,000 volts while emitting virtually zero RFI. This means that they are also compatible with virtually all hi-tech on board computer systems.
Although we try to keep all of the popular combinations of Eagle ignition leads on the shelf, it is impossible to keep them all on the shelf especially when you take into account that Eagle make their sets from 9.0mm, 10.5mm and 11.0mm silicone coated cable in 3 different colours. Then you have under exhaust manifold, over the valve cover and around the valve cover sets. On top of that we need to account for different spark plug boots and standard ignition distributor boots (female cap posts), HEI (male disi cap posts) and MSD boots.
| EAGLE ELIMINATOR II 10.5mm COPPER FERRITE SPIRAL CORE LEADS | |
| The next generation in street/strip ignition lead technology! | |
| Lead Diameter | 10.5mm |
| Colour | Blue, Black & Red |
| Application | High Performance Street /Strip vehicles but primarily designed for racing applications burning Hi-octane and Methanol fuels. |
| Ignition System Compatibility | Very high output aftermarket ignition systems including most Crane™ & MSD™ types. Note: We recommend consulting with your ignition manufacturer for system compatibility before using this product. |
| Description | Eliminator Series II ignition leads have been specifically designed to cope with today’s high compression high horsepower race engines. Being fitted with three layers of Silicone jackets, they are a proven performer at carrying secondary voltages in excess of 70,000 volts whilst emitting virtually zero RFI making them compatable for use with virtually all hi-tech on board computer systems. |
| Cable Standards | Tested to ISO 3808 Standards. |
| Features | Eagle's Finger Grip SPB Features |
| Eagles computer designed "finger grip" Spark Plug Boot allows easy on – easy off installation. | |
| Unequalled durability by using our best High Temp Silicone compounds. | |
| Terminal Features | |
| Zero rust 0.43mm Stainless Steel Base. | |
| High Memory spring steel retaining clip for positive terminal locking at all RPM'S. | |
| Triple cable retaining ribs and "W" shaped crimp ensure superior cable retention. | |
| Cable Features | |
| Ultra low 325 ohms per metre resistance Spiral wound. Stain Steel over Ferrite coated Kevlar™ inner core. | |
| Nylon Tape gives exceptional tensile and terminal pull off strength. | |
| Three 260° C Hi-temp Silicone jackets for superior insulating properties. | |
| SKU | E1058766BLACK_ONE |
| Brand | Eagle |
| Shipping Weight | 0.0800kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.050m |
| Shipping Length | 0.050m |
| Shipping Cubic | 0.000500000m3 |
| Unit Of Measure | ea |
