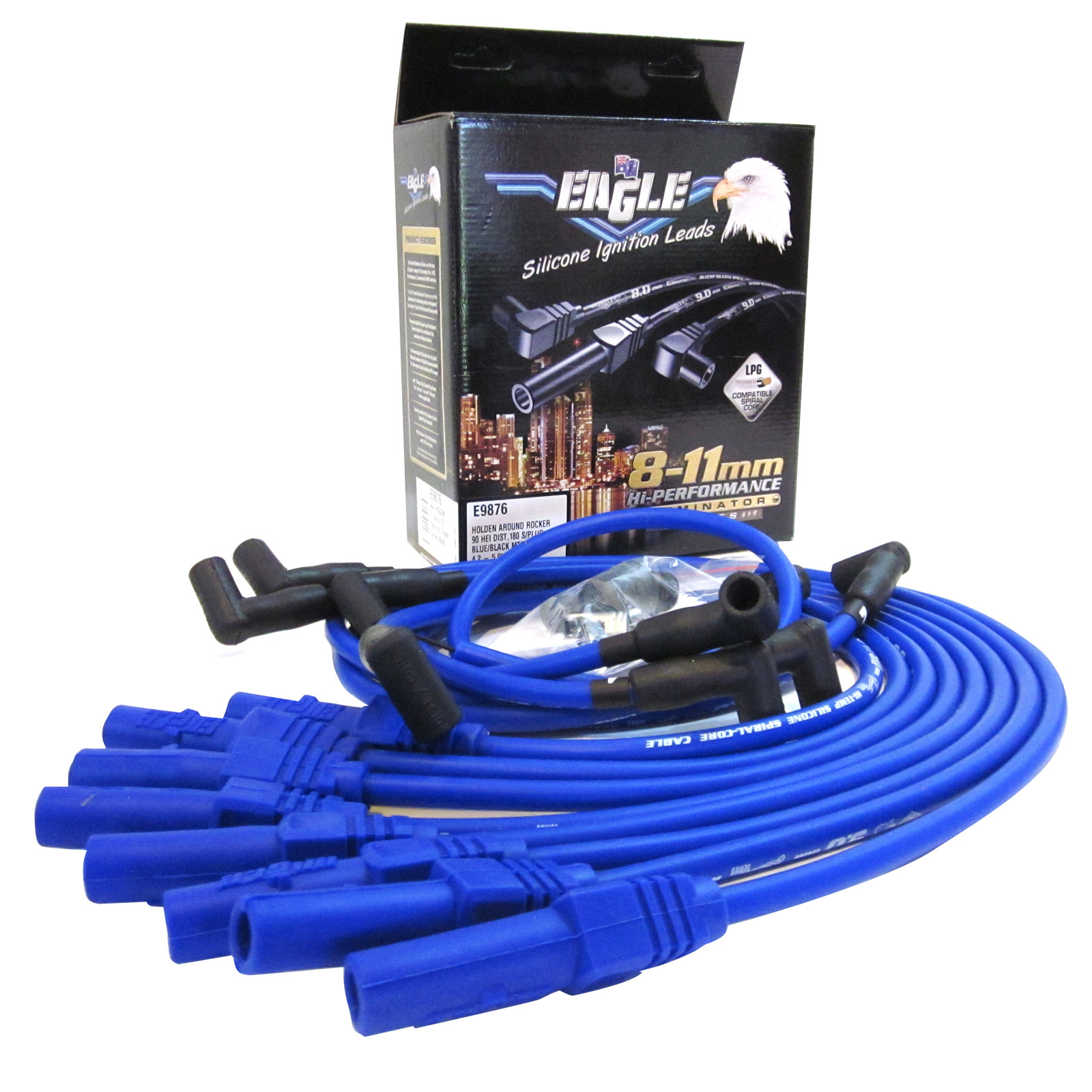

Eagle 9mm Eliminator Series I Ignition Spark Plug Leads Wires SB Chev 283-400 - suits std. style distributor (see attached diagram- type #1)

This set reaches over the valve covers

Eagle 9mm Ignition Spark Plug Leads SBC Small Block Chev Chevrolet 283, 302, 307, 327, 350, 383, 400

Standard style female distributor, over the valve covers, 90 degree distributor boots, 90 degree spark plug boots

This set suits a SB Chev V8 with a standard style distributor cap with female posts.

The 9mm lead set comes with 90 degree high temperature pure silicone spark plug boots and 90 degree distributor boots and terminals.

The standard colour is Blue. You can also choose Red or Black however there can be a 7-10 delay on these colours.

Although we try to keep all of the popular combinations of Eagle ignition leads on the shelf, it is impossible to keep them all on the shelf especially when you take into account that Eagle make their sets in 5.0mm, 7.0mm, 8.0mm, 9.0mm, 10.5mm and 11.0mm silicone coated cable in 3 different colours. Then some engines  different length sets that reach under exhaust manifold, over the valve cover and around the valve cover sets. On top of that we need to account for different spark plug boots and standard ignition distributor boots (female cap posts), HEI (male disi cap posts) and MSD boots.

When we have your leads in stock, we try to send the order out within 24 hours. If your set needs to be ordered from Eagle, please allow 3-10 days before shipping depending on Eagles production times. Please let us know if your set is urgent.

STAINLESS STEEL FERRITE SPIRAL INNER CORE:
Eagle Eliminator series are fitted with 1300 ohms per metre Ferrite Spiral Core conductor which by induction design delivers peak voltage to the plugs ensuring almost complete combustion for super quick starts and smooth running.

More ignition power means improved combustion efficiency so you can get better economy and more power across the RPM range. The Patented Dual-Mag design incorporates two premium Spiral Core magnetic suppression core conductors which are protected by a layer of braided fiberglass and then coated in hi-temp silicone to resist the harshest of under bonnet conditions.

Features:

Boot & Tube Assembly Features:

• Hi-temp Silicone Well Cover boot
• PVT insulator tube insulates plug terminal to prevent high voltage crossover
• Hi-temp Silicone Tip Seal.

Terminal Features:

• High Memory spring steel retaining clip for positive terminal locking at all RPM'S.
• Extra long .51mm base offers minimal heat transfer from plug tip to inner conductor. This ensures maximum cable life.
• Triple cable retaining ribs and "W" shaped crimp ensure superior cable retention.

Cable Features:

• Simply "the best" Stainless Steel wound Ferrite coated Spiral Core conductor yields ultra low resistance ensuring peak voltage delivery to the spark plugs.
• High Dielectric Silicone inner jacket.
• Technologically advanced nylon tape adds tensile strength.
