New Aluminium Universal Remote Mount Oil Filter/ Fuel Filter Relocation Kit, suit Street or Racing applications

Mounts 1 x Z9 Ryco oil filters or equivalent with 3/4" x 16 threads.

Great for:

• Engine swaps
• To give easy access to change oil filter
• Kit includes oil grade pressure hose and all fittings
• Universal oil filter pad mounting suits most engines including petrol and diesel
• Suits engines with 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm thread sizes

Remote mounting your oil filters means that you clear up more space in the engine and reduce the heat build-up in the oil.

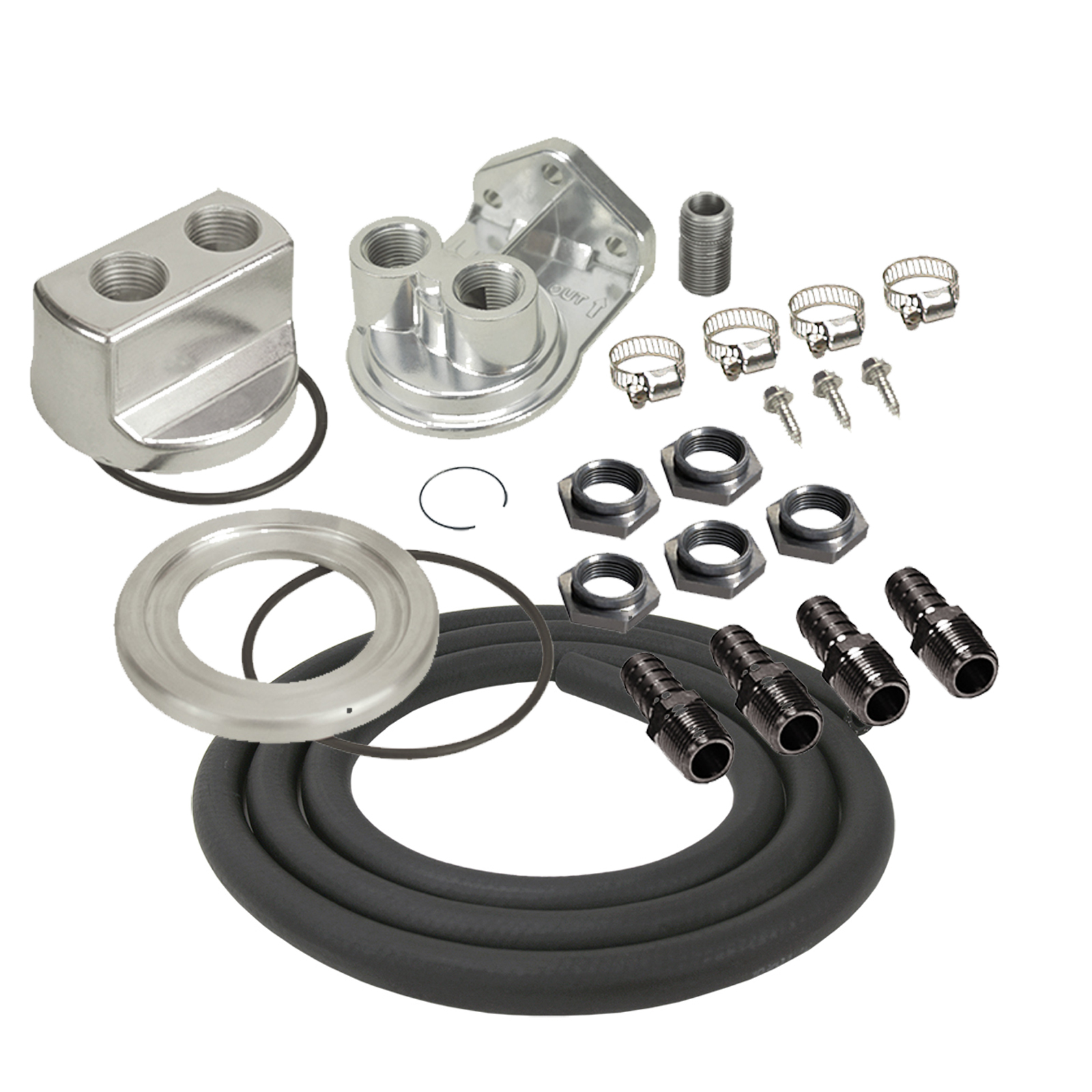

This Universal single filter kit allows oil filter to be relocated to a convenient, easy-access location. Includes a high quality, die cast aluminum 1/2" NPT ports up filter mount and a 1/2" NPT ports spin-on adapter with most everything you need for an easy installation. Filter mount uses Fram PH8A Oil Filter or equivalent. Designed to fit most passenger vehicles on the road today with 2 1/2" to 3 1/2" oil filter landings. Spin-on adapters provide external oil lines to allow the addition of an engine oil cooler and/or remote filter mount, installing at the stock engine oil filter location.

-------THIS KIT DOES NOT INCLUDE THE FILTERS------

Features:

• Allows for oil filter to be moved to a more convenient location
• Faster and easier filter changes
• Ideal for engine swaps
• Increases oil capacity
• Single ports-up style filter mount
• Cast from high quality aluminum
• 10 ft 1/2" OEM spec hose provided
• Filter mount uses Fram PH8A or equivalent filter
• Type J Universal Spin-On Adapter with 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm thread sizes *see application guide for specific applications

Specifications:

• Adapter thread size: 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm
• Adapter thickness: 1-3/4" or 2"
• Adapter inlet size: 1/2" NPT
• Remote filter landing: 2-1/2", 2-3/4" or 3-1/2"
• Remote filter thread size: 3/4"-16
• Remote filter inlet size: 1/2" NPT
• Hose size: 1/2"
• Hose length: 10'
