Eagle 9mm Ignition Spark Plug Leads Wires BB Chev 396-454 Around Rocker Covers

Eagle 9mm Ignition Spark Plug Leads BBC Block Chev Chevrolet 396, 427, 454, 502

This set suits a standard female distributor cap. Does not fit HEI cap with male terminals. See type #1 cap in attached diagram.

Around Rocker Covers, Std. 90° distributor boots, with 145° silicone spark plug boots
This lead set is the correct length to use with our special Zytel Hi-Temp lead brackets. These mounts require a longer set of leads that go around the valve covers rather than over the valve covers or under the exhaust manifolds.

These are the best brackets to use to ensure a tidy engine bay. It also ensures that your expensive leads don't fall onto your extractors or headers. See above for pictures of typical installations.

Mounting brackets are not included with this set. Check our store for hi-temp Zytel mounting bracket kits shown above or choose our package leads and mounts package deal. See examples in above images showing how these leads can be arranged around the valve covers rather than over the valve covers.

To order matching lead separator loom brackets, click here These brackets are also available in various colours and as vertical (next to the valve covers) or horizontal mounts (out above the extractors).

This set suits a BB Chev V8 with a standard (non-HEI) style distributor cap with female posts.

Choose your lead colours and specify while ordering. You can choose from:

• Blue
• Black
• Red

Although we try to keep all of the popular combinations of Eagle ignition leads on the shelf, it is impossible to keep them all on the shelf especially when you take into account that Eagle make their sets in 5.0mm, 7.0mm, 8.0mm, 9.0mm, 10.5mm and 11.0mm silicone coated cable in 3 different colours. Then some engines  different length sets that reach under exhaust manifold, over the valve cover and around the valve cover sets. On top of that we need to account for different spark plug boots and standard ignition distributor boots (female cap posts), HEI (male disi cap posts) and MSD boots.

When we have your leads in stock, we try to send the order out within 24 hours. If your set needs to be ordered from Eagle, please allow 3-10 days before shipping depending on Eagles production times. Please let us know if your set is urgent.

STAINLESS STEEL FERRITE SPIRAL INNER CORE:
Eagle Eliminator series are fitted with 1300 ohms per metre Ferrite Spiral Core conductor which by induction design delivers peak voltage to the plugs ensuring almost complete combustion for super quick starts and smooth running.

More ignition power means improved combustion efficiency so you can get better economy and more power across the RPM range. The Patented Dual-Mag design incorporates two premium Spiral Core magnetic suppression core conductors which are protected by a layer of braided fiberglass and then coated in hi-temp silicone to resist the harshest of under bonnet conditions.

Features:

Boot & Tube Assembly Features:

• Hi-temp Silicone Well Cover boot
• PVT insulator tube insulates plug terminal to prevent high voltage crossover
• Hi-temp Silicone Tip Seal.

Terminal Features:

• High Memory spring steel retaining clip for positive terminal locking at all RPM'S.
• Extra long .51mm base offers minimal heat transfer from plug tip to inner conductor. This ensures maximum cable life.
• Triple cable retaining ribs and "W" shaped crimp ensure superior cable retention.

Cable Features:

• Simply "the best" Stainless Steel wound Ferrite coated Spiral Core conductor yields ultra low resistance ensuring peak voltage delivery to the spark plugs.
• High Dielectric Silicone inner jacket.
• Technologically advanced nylon tape adds tensile strength.
• 260°C High Temp. modified Silicone outer jacket ensures complete protection against heat and engine bay contaminants.

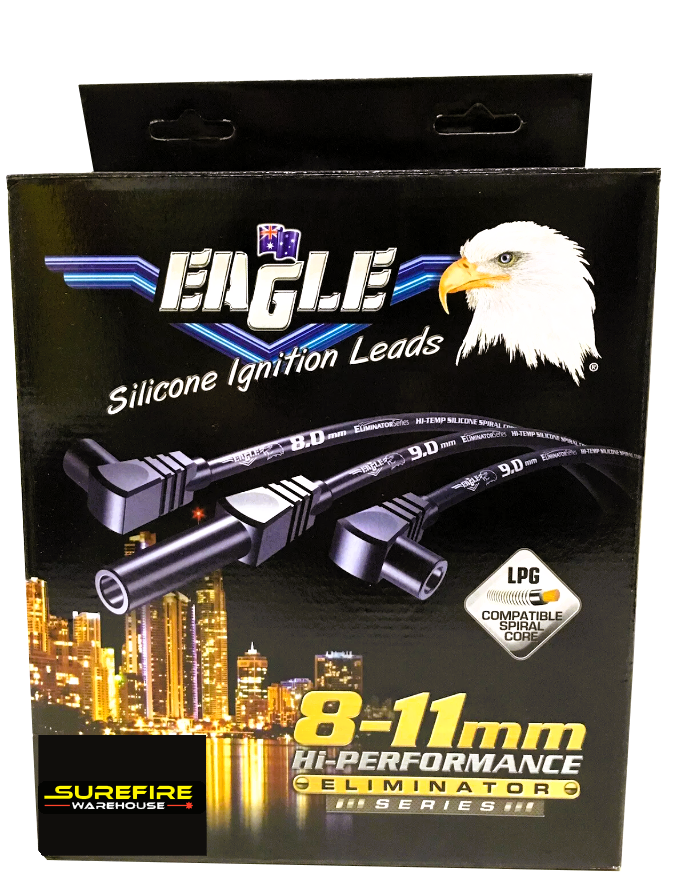

Note that actual set may differ from file photo.
